If you run a warehouse, you already know that the surface your pallets sit on matters more than most people think. Pallet racking mesh decks are one of those things that look simple from a distance but carry a lot of weight, literally and figuratively, when it comes to how safely and efficiently your storage system actually operates.
This guide covers what racking mesh decks are, why they are worth using, how to pick the right type, and what mistakes to avoid when buying them. Whether you are setting up a new facility or upgrading an older one, the information here will help you make a smarter decision.
What Are Pallet Racking Mesh Decks?
Pallet racking mesh decks are wire or steel grid panels that sit across the horizontal beams of your pallet racking system. They create a stable, load-bearing surface for products, cartons, and pallets. Unlike solid shelf surfaces, mesh decks allow air to pass through freely, light to reach lower levels, and sprinkler systems to work properly in the event of a fire.
The basic construction is simple. A rectangular steel frame surrounds a grid of welded wires or metal strips. The waterfall edge, which is the part that hooks over the front beam, keeps the deck locked in place and distributes weight more evenly.
Warehouse mesh decking has been standard practice in professional storage facilities for decades, and for good reason. It is cost-effective, durable, and compatible with nearly every type of selective pallet rack on the market.
Why Warehouses Prefer Wire Mesh Decking
The shift toward wire mesh decking over wood or solid steel panels came down to a few practical advantages that add up over time.
Fire code compliance is probably the biggest driver. In most countries, fire codes require that sprinkler systems can reach all areas of a racking bay without obstruction. Solid decks block water flow, which is a serious safety hazard. Wire mesh decking solves that problem immediately because the open grid allows water to pass straight through.
Visibility and light are two other factors people underestimate. Open mesh decks mean workers can see inventory on lower levels without crouching or using flashlights. That reduces pick errors and makes cycle counts faster and more accurate.
Debris management also becomes easier. Dust, small packaging scraps, and pallet wood splinters fall through the mesh rather than building up on the surface. This keeps your racking cleaner and reduces the fire risk that comes from accumulated debris.
Then there is the question of cost. When you compare pallet rack wire decking against alternatives like plywood or solid steel shelving, wire mesh decking tends to be more affordable on a per-unit basis, easier to install, and far lighter to handle during setup or reconfiguration.
Types of Wire and Steel Mesh Decking
Not all racking mesh decks are built the same way. There are a few key variations to understand before you order.
Standard waterfall wire mesh decking is the most common type. The front edge of the deck wraps down over the front beam, creating a lip that locks the panel in place. This style works with the vast majority of standard pallet racking systems.
Inverted channel mesh decking uses a channel that sits inside the beam rather than over it. This is often used when you need a flush surface or when the racking beam has a specific profile that requires it.
Flared channel decking is designed for use with structural or roll-formed beams where the channel needs to flare outward to achieve a proper fit.
Step wire decking or offset decking fits inside the step of step beams rather than sitting on top. This style is popular in distribution centers that use step beam rack systems.
The wire gauge and spacing of the grid also vary by manufacturer and load requirement. Heavier capacity applications call for thicker wire and tighter grid patterns. Standard warehouse mesh decking for typical pallet loads will usually feature a wire gauge between 4 and 6, depending on the rated capacity.
For a deeper look at racking load capacities and how decking interacts with overall system ratings, this overview from the Rack Manufacturers Institute is a useful starting point.
Steel Mesh Decking vs. Metal Mesh Decking: Is There a Difference?
The terms steel mesh decking and metal mesh decking are often used interchangeably, but there is a small distinction worth noting. Most decking sold for warehouse use is made from cold-rolled steel, so technically, all steel mesh decking is metal mesh decking, but not everything described as metal mesh decking is necessarily steel.
Some lighter-duty products use aluminum wire or galvanized coatings over lower-grade steel. For heavy warehouse use, you want to confirm that the product you are buying is cold-rolled steel with a powder coat or zinc finish for corrosion resistance.
If you are operating in a cold storage environment, a food production facility, or an outdoor covered warehouse, look specifically for galvanized wire mesh decking. The galvanized finish resists rust far better than a standard powder coat in high-humidity or temperature-variable environments.

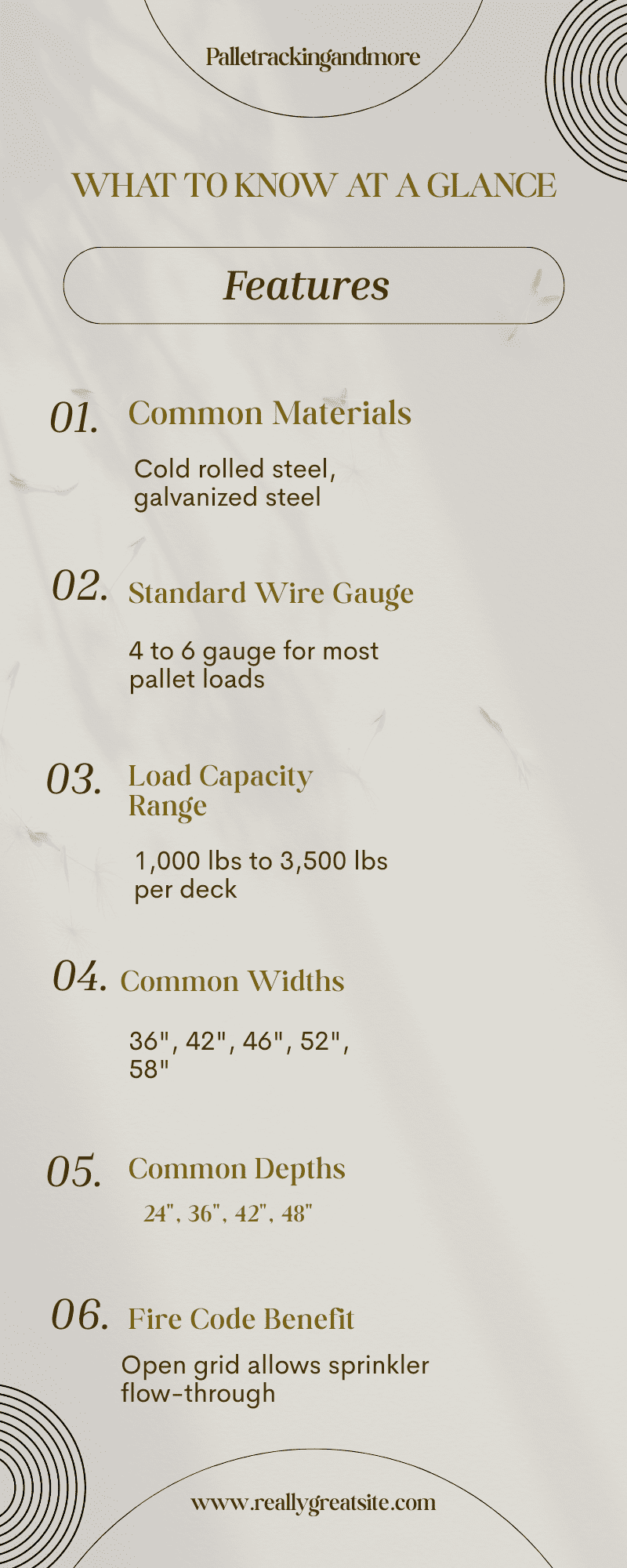

Quick Reference for Pallet Racking Mesh Decks
Buying Used Wire Mesh Decking: Is It Worth It?
The market for used wire mesh decking is active, especially around warehouse closures and liquidation events. Buying used can significantly reduce your per-unit cost, sometimes by 40 to 60 percent compared to new.
That said, there are a few things to inspect carefully before purchasing used pallet rack wire decking.
Check the frame welds first. Any cracking, visible gaps, or rust at weld points indicates the deck has been overloaded or exposed to moisture for extended periods. These are structural issues that cannot be repaired cost-effectively.
Look at the waterfall edges or channel components. If they are bent, warped, or cracked, the deck may not seat properly on your beams, which creates a safety hazard.
Also, confirm that the dimensions of the used wire mesh decking match your existing beams. Even a one-inch difference in width or depth can result in a deck that rocks, overhangs, or fails to distribute load correctly.
Buying from a reputable industrial surplus dealer is generally safer than buying through private listings, as reputable dealers typically inspect and grade their inventory before resale.
How to Measure for the Right Racking Mesh Deck
Getting the sizing right is not complicated, but it does require a bit of attention.
Deck width should match the beam length you are working with. Most selective pallet racking systems use beams that are 96, 108, or 144 inches wide, and decks come in widths designed to fill those bays exactly or in multiples.
Deck depth should match the depth of your upright frames. Common frame depths range from 36 to 48 inches. Your deck depth should match so that the front edge sits on the front beam and the back edge sits on the rear beam with no overhang.
Load capacity is usually expressed as a uniformly distributed load across the full deck surface. If you are stacking heavy cartons or placing products that create point loads, you should account for that and choose a heavier-rated deck accordingly.
For a practical explanation of how decking capacity interacts with your racking system design, this storage resource from OSHA’s materials handling guidelines offers solid foundational information.
Common Installation Mistakes to Avoid
Even experienced warehouse teams make a few recurring mistakes when installing warehouse mesh decking.
Mixing deck types across a single bay is one of them. If you are using waterfall decks on lower levels and inverted channel decks on upper levels, you may end up with inconsistent load distribution or decks that do not seat flush on the same beams.
Overloading a single deck is another issue. The load rating printed on the deck applies to a uniformly distributed load, meaning the weight is spread evenly across the entire surface. Placing a single heavy pallet right in the center creates a point load that can exceed the rated capacity even if the total weight seems within range.
Skipping periodic inspections is probably the most common error of all. Wire mesh decking should be inspected regularly for bent wires, cracked welds, and frame deformation. A damaged deck that is still in use is a serious liability in any facility.
Final Thoughts
Pallet racking mesh decks are not the most glamorous part of a warehouse operation, but they are absolutely foundational to how well that operation runs. The right decking improves safety, helps you pass fire code inspections, keeps your inventory visible, and makes day-to-day operations smoother across the board.
Whether you are buying new steel mesh decking for a fresh installation, sourcing used wire mesh decking to reduce upfront costs, or simply replacing worn panels in an existing system, taking the time to match your decking choice to your actual load, environment, and racking type will always pay off in the long run.
If you are planning a full warehouse racking review, this guide from the Material Handling Industry Association covers the full picture of storage system planning and is worth bookmarking for reference.
Why Buy Your Racking Mesh Decks From Palletrackingandmore?
We know that choosing the right warehouse mesh decking is not just about price. It is about getting the right fit, the right load rating, and the right advice before your order ships.
Here is what makes us the go-to choice for Australian businesses:
Australian Stock, Ready to Ship. No waiting on overseas containers. Our pallet rack wire decking is warehoused locally and ready for fast dispatch across Australia.
Sizing Support Before You Buy. Not sure which deck depth or wire gauge you need? Our team helps you get the measurements right the first time, so you are not dealing with returns or misfits on site.
Bulk Order Pricing: Fitting out a full facility? We offer competitive pricing on bulk orders of steel mesh decking and wire mesh decking panels. Get in touch for a custom quote.
Compatible With Most Racking Systems Our range covers standard waterfall edge decking that fits most selective pallet racking systems already in use across Australian warehouses.
FAQs
Q1. What are pallet racking mesh decks used for?
Pallet racking mesh decks are used to create a stable load-bearing surface across the horizontal beams of a pallet racking system. They support pallets, cartons, and loose products while allowing air circulation, light, and fire sprinkler water to pass through the open grid. They are standard equipment in most commercial and industrial warehouse storage setups.
Q2. What is the difference between wire mesh decking and steel mesh decking?
Wire mesh decking refers to the open grid style of decking made from welded wire panels set inside a steel frame. Steel mesh decking is a broader term that can include both wire grid styles and heavier pressed or expanded metal designs. In most warehouse contexts, the two terms refer to the same product. When in doubt, check the wire gauge and load rating rather than relying on the label alone.
Q3. Will wire mesh decking meet Australian fire safety requirements?
Yes. One of the primary reasons wire mesh decking is preferred in Australian warehouses is that the open grid design allows fire suppression sprinklers to distribute water through all levels of a racking bay without obstruction. Solid decking surfaces block water flow and can create compliance issues under Australian fire safety standards. Always confirm the specific requirements with your local fire authority or building certifier for your facility type.
Q4. How much weight can a standard racking mesh deck hold?
Load capacity varies by product, but most standard warehouse mesh decking panels are rated between 500 kg and 1,500 kg per deck as a uniformly distributed load. Heavier-duty options are available for high-capacity applications. It is important to note that the deck rating must be considered alongside your upright frame and beam ratings to determine the true capacity of your racking bay. Never exceed the lowest rated component in the system.
Q5. Can I use used wire mesh decking in my warehouse?
Yes, used wire mesh decking can be a cost-effective option provided the panels are in sound structural condition. Before purchasing used decking, inspect the frame welds for cracking, check the waterfall edge or channel for bending or warping, and confirm the dimensions match your existing beam lengths and frame depths. Buying from a reputable supplier who grades their used stock is always the safer approach.
Q6. Are pallet racking mesh decks easy to install?
Most waterfall edge wire mesh decking panels are designed for tool-free installation. The waterfall lip hooks over the front beam and the panel rests on the rear beam, locking into position under load. No bolts or special tools are typically required. The pr
